Efficiency, durability and intelligent design for fish farming, irrigation and reservoirs
The Titan Brasil Piscis Elevated Tank combines the robustness of reinforced PVC (with nylon weave and thickness equivalent to 1.2mm) with the resistance of the hot-dip galvanized iron structure. Available in volumes ranging from 7.87m³ to 977.64m³, it offers a modern, fast and safe solution for water storage, fish farming, irrigation, effluent treatment and much more.
✅ Advantages of the Titan Elevated Tank
Reinforced geomembrane: 0.9mm PVC with internal nylon, 50% more resistant to tears and holes than pure materials, supports repairs even with water in the tank
Malleable geomembrane: Adjusts perfectly to the structure, providing a professional finish
Non-toxic: Safe for use in systems with human consumption and aquatic life
High UV protection: Average useful life of 15–20 years, up to 40 years in the shade
Hot-dip galvanized structure: Estimated durability of 25 years, surpassing cold galvanized steel that lasts only 5 years
Extra parts included: Basic replacement accessories to avoid delays in the work
Fast delivery: Custom-made tarps available for collection in up to 2 hours
Warranty: 2 years from the factory + dedicated technical support
🧱 Tank Composition
0.9mm PVC blanket with internal reinforcement
PVC outlet flange with rubber seal (subject to verification according to model)
Support structure with covered wires
Reinforcement screen with structural belt in galvanized iron
Fixing posts and accessory parts (also galvanized)
Internal “baby” protector against perforations by posts
Polypropylene covers to prevent water accumulation
Super repair tape (Flextape), usable even with a full tank

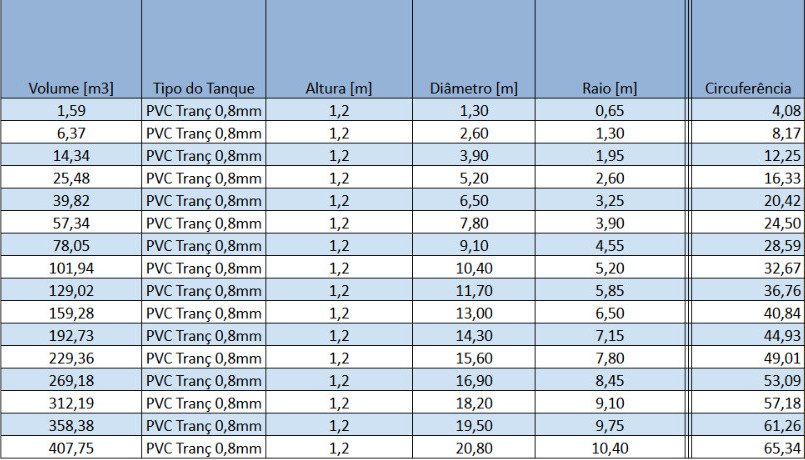

Sizes of the water tanks:
🧭 Main Applications
Fish farming and aquaculture
Irrigation and water storage
Tanks for livestock drinking
Storage of acids and effluents
Waterproofing works and green roofs
Sporting events and temporary floors
⚡ Advantages in Relation to Conventional Structures
