GOLD 0.86HP Radial Air Compressor – Efficiency, Durability and Uninterrupted Operation

The GOLD 0.86HP Radial Compressor was designed for systems that require continuous and reliable oxygenation, offering excellent air output with low energy consumption. Ideal for fish and shrimp farming systems, bioflocs and effluent treatment, the model stands out for its durability, weather resistance and ability to operate 24 hours a day without interruptions.

With a robust structure and premium finish, it uses high-precision injected parts that are resistant to heat, impact and vibrations, ensuring greater stability and useful life for the equipment.

Technical Specifications:

• Power: 0.86HP
• Yield: 2.0 m³/min
• Voltage: 220V or 380V
• Estimated capacity: up to 5 tons of fish (based on a system with micro-perforated diffusers, standard oxygenation and 8% PV power supply)
• Air outlet: 1 ¼” (40mm)
• Approximate weight: 18kg

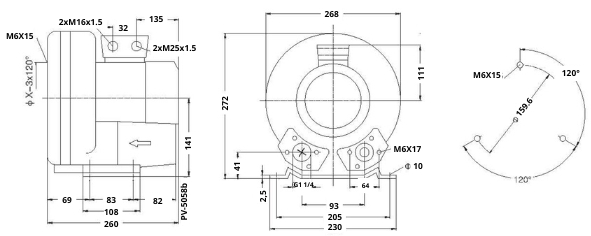

• Dimensions: 38 x 38 x 40cm
• Installation: can work horizontally or vertically

Exclusive Advantages:

• Continuous work (24h) without the need for breaks
• Sealing of the electrical part: can be exposed to rain and sun
• Injected parts: more resistant to heat, falls and vibration
• High UV protection: anti-corrosive paint for outdoor environments
• Spare parts available with national standard
• Product ready for delivery – import direct
• Customization for resellers (color and logo, upon request)

Ideal applications:

• Aeration of excavated or elevated tanks
• Biofloc systems and intensive breeding
• Frying laboratories
• Effluent treatment and industrial processes
• Use with positive pressure (pushing air) or negative pressure (creating vacuum)

GOLD Radial Compressor 0.86HP – Power and reliability for those seeking high performance, low consumption and uninterrupted operation in demanding environments.

PERFORMANCE CURVE

Product performance curve is below to check if these can also meet your needs.
Positive pressure refers to the product pushing air, for example, pulling air from outside and pushing it into the tank.
Negative pressure refers to the product pulling in air, for example, pulling air from inside a plumbing, creating a vacuum in it.

Warranty

12-month factory warranty against manufacturing defects, not guaranteeing misuse or installation.

There is no warranty for electrical breakdowns in compressors that do not have an electrical protection panel.
