The GOLD 1.10HP Radial Compressor is ideal for those seeking high performance with low consumption, especially in biofloc systems, excavated tanks and intensive fish and shrimp farming. With dual stage and stable flow, it delivers efficient and continuous aeration, even under prolonged use and in outdoor environments.
Developed with highly durable materials and injected parts, it guarantees resistance to heat, impacts and vibrations, in addition to having a complete electrical seal, and can operate exposed to sun and rain, with UV protection and anti-corrosive paint.
Technical Specifications:
- Power: 1.10HP
- Yield: 1.72 m³/min
- Pressure: 2.5 m.c.a.
- Stages: Double stage
- Voltage: 220V
- Air outlet: 1 ¼” (40mm)
- Weight: 18kg
- Dimensions: 38 x 38 x 40cm
- Installation: can operate vertically or horizontally
- Estimated capacity: up to 4.28 tons of fish (based on standard feeding and use of micro-perforated diffusers)
Main Advantages:
- Continuous work 24 hours a day without breaks or overheating
- Weather resistance: can be installed outdoors (electric seal and paint with UV protection)
- Injected parts: greater precision, resistance and uniform finish
- Low maintenance: replacement with national standard parts
- Customization for resale: colors and logo upon request
- Product ready for delivery: national stock with fast shipping
Recommended applications:
- Biofloc systems and intensive farming
- Aeration in excavated, elevated or tarpaulins
- Frying and nursery laboratories
- Processes with positive pressure (pushing air) or negative pressure (sucking air)
GOLD Radial Compressor 1.10HP – The ideal balance between power, economy and robustness for systems that require continuous efficiency with safety and durability.

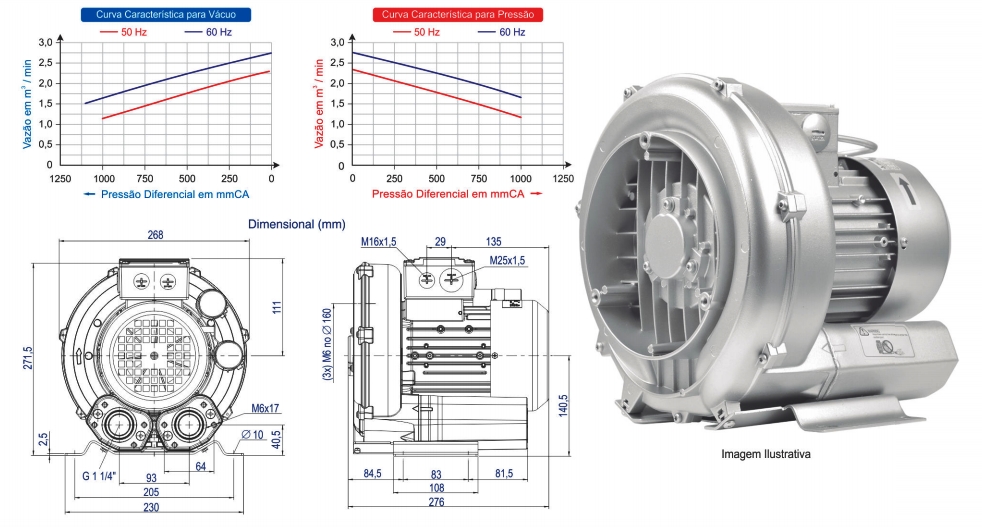

CURVA DE DESEMPENHO
Curva de desempenho do produto se encontra abaixo para verificar se estes também possam atender suas necessidades.
A tabela abaixo apresenta os dados técnicos de toda nossa linha de compressores, o compressor que esta sendo visualizado possuimos todas as voltagens!
Garantia
Garantia de fábrica contra defeitos de fabricação, não garantindo mal uso ou instalação.
Não enquadra garantia para compressores que não possuem painel de proteção elétrica.
Imagens meramente ilustrativas e podem não representar a realidade.
