Video with various information about the product presented by a designer:
Benefits:
Rain resistance: The electrical part is sealed, allowing it to be exposed to rain and sun
Uniform and resistant finish: our radial compressors have injected parts, unlike most competitors, producing a uniform product where all parts are standard and resistant to heat, drops and vibrations.
Customized color and logo: for resellers, we can send customized colors and logos (consult a salesperson)
Uninterrupted work: gold line radial compressors are manufactured with materials that allow them to work 24 hours without a break!
UV Protection: It has high UV protection with anti-corrosive paint.
Deadline: We are direct importers, all products are ready for immediate delivery! (Consult a seller)
Spare parts: replacement parts directly from our company, and we use Brazilian standard parts, making it possible to replace a large part of the parts with products produced on a large scale in the national market
DETAILED DESCRIPTION
Voltage 220V/380V/440V
Power 2.04CV
Yield 2.17m³/min
Recommendation supplies up to 5.42T (maximum flow) of biomass (calculation basis O² dilution yield 20%, feed 8% of PV in feed, micro-perforation diffusers and equipment yield 100%, if you need help with more specific calculations call (11)2021-5593 or get in touch at [email protected]
Maximum pressure 4000 mmCA
Maximum Vacuum 3600 mmCA

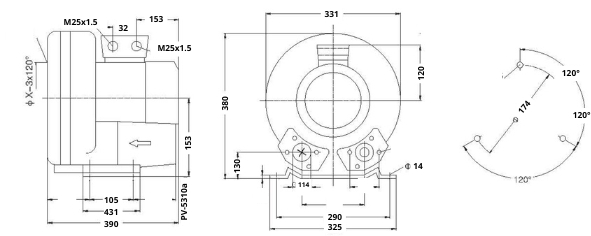

40 x 41 x 44 20/ 24 kg
40mm 1 1/4" outlet
Can work horizontally or vertically
Product with 3 months warranty - against manufacturing defects, and warranty extended to 12 months, if you have our electrical protection panel.
Product with 3 months warranty - against manufacturing defects, and warranty extended to 12 months, if you have our electrical protection panel.
PERFORMANCE CURVE
Product performance curve is below to check if these can also meet your needs.
Positive pressure refers to the product pushing air, for example, pulling air from outside and pushing it into the tank. Negative pressure refers to the product pulling air, for example, pulling air from inside a pipe, creating a vacuum in it.
TECHNICAL DATA
The following table presents the technical data of our entire line of compressors, the compressor that comes with all voltages!
Positive pressure refers to the product pushing air, for example, pulling air from outside and pushing it into the tank. Negative pressure refers to the product that sucks in air, for example, it takes air from inside a tube, creating a vacuum in it.
guarantee
12-month factory warranty against manufacturing defects (guarantee against electrical defects only when purchasing our electrical protection panels), not guaranteeing misuse or installation.
There is no warranty for compressors that do not have an electrical protection panel.
The images are for illustrative purposes only and may not represent reality.
